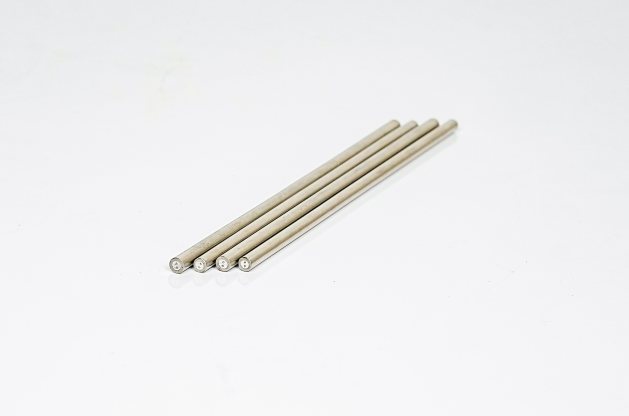

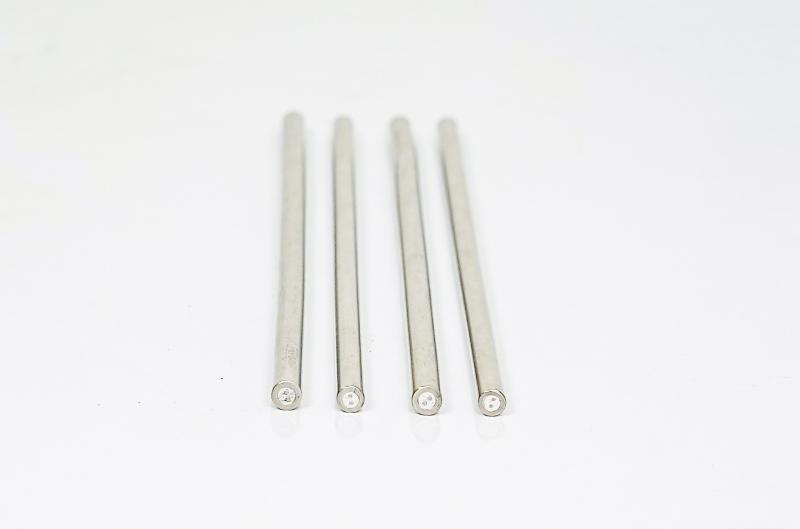

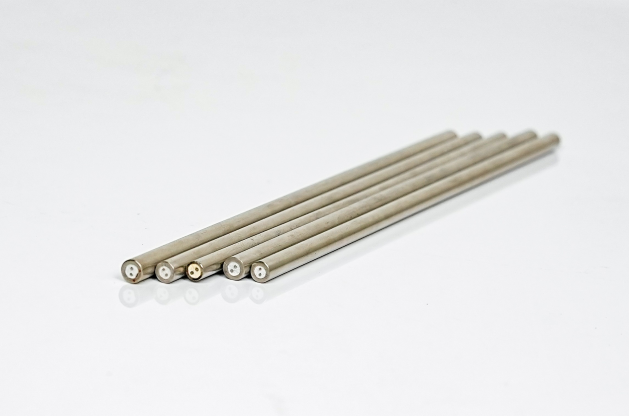

The Double Wall Mineral Insulated Thermocouple Cable consists of an internal thermocouple wire and an external double-walled protection tube. This design makes the thermocouple highly flexible while maintaining excellent vibration resistance and high pressure resistance.
We can supply Mineral Insulated Thermocouple Cable from O.D=3.0 to 12.7 mm or 0.12" to 0.5" with SS310,SS446,SS347, Inconel600/800/825, Nircobell sheath and etc.
Also If you have a special Heavy Wall MI Cable application, contact us without hesitate, our very experienced engineers will help you to find out the solution.
|
|
SS304/321
|
SS316
|
SS310
|
INCONEL600
|
NIRCOBELL
|
|
DIA(mm/inch)
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
|
3.0/.120
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
3.2/.125
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4.0/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4.5/.177
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4.8/.188
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
5.0/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
6.0/.236
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
6.4/.250
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
8.0/.313
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
9.5/.375
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
10/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
10.8/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
12.7/.500
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
The size’s tolerance of SICC’ mineral insulated cable
|
Outside Sheath Diameter
|
±0.002" (±0.05mm) or ±1% of nominal diameter
|
|
Wall Thickness
|
20% of sheath diameter as a minimum
|
|
Wire Diameter
|
15% of sheath diameter as a minimum for 2 wires ,
|
|
12% of sheath diameter as a minimum for 4 wires,
9% of sheath diameter as a minimum for 6 wires
|
|
Calibration
|
To meet special limits of error as defined in ASTM-E230 and IEC 60584-2
|
|
MgO Purity
|
99.6% Sea Mgo Powder
|
Double Wall Mineral Insulated Thermocouple Cable is a temperature sensing cable designed for extreme industrial environments ,such as high temperature and high pressure, strong wear and corrosion. Its core feature lies in the double-reinforced structure - the mineral insulated structure plus double wall to form physical and chemical dual protection.
Our highly experienced sales and technical team can help you with any questions or concerns, ensuring that you have the information you need about Mineral Insulated Thermocouple Cable. Here in SICC, we are committed to building a strong partnership with our customers and supporting you every step of the way.
For more information or to discuss how our Double Wall Mineral Insulated Cable can benefit your business, we look forward to your information!
