Products
Home | Mineral insulated cable | Mineral insulated RTD cable |

Mineral insulated RTD cable

Mineral insulated RTD cable manufacturer
Mineral insulated RTD cable manufacturer
Mineral insulated RTD cable manufacturer

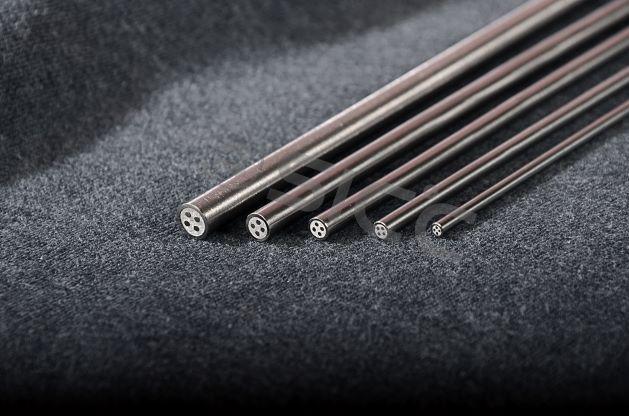

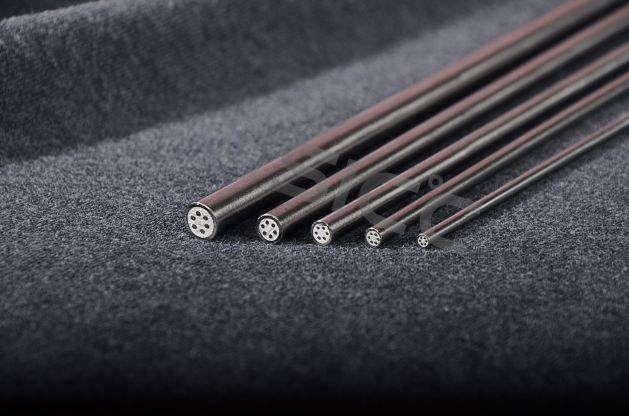

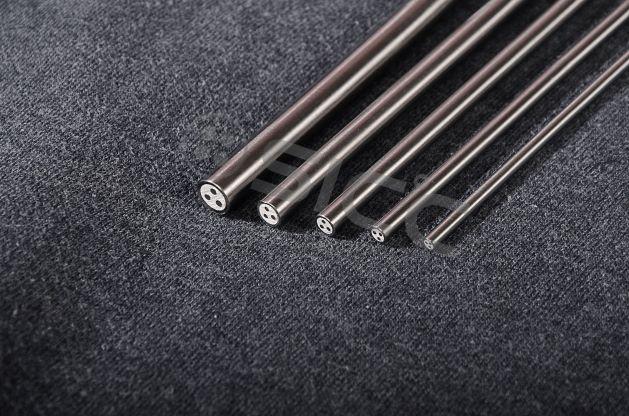

Mineral insulated RTD cable

The mineral insulated RTD cable is combined with thinfilm element,Mgo powder insulated and sheath materials,as a compact entirety. Its principle is according to the resistance changes as the temperature changes.The MI RTD cables are the base material for RTD sensors, its structure advantage with anti pollution and mechanical strength promise can be applied in the harsh environment.
  • TYPE:

    2/3/4/6/8 cores
  • DIA:

    2.0 to 8.0 mm or 0.079 to 0.313
  • SHEATH MATERIALS:

    SS304,321,316,316Ti,446,,etc

SICC is one of the world's leading supplier of mineral insulated cable with 10 production lines and 4 million meters annual. Over the decades, we constantly refine and improve the technology, inculding accuracies,powder grades,sheath materials,configurations,as it remains the heart of our products to this day.

SICC can also customized mineral insulated RTD cable based on your detailed specifications. Thus, meeting your project or business requirements.

Send us your inquiries today!


SPECIFICATIONS DETAILS

SICC can supply all kinds of mineral insulated RTD cables, including 2,3,4,6,8 cores with Nickel and Copper conductors.

Also If you have a special MI RTD cable application, contact us without hesitate, our very experienced engineers will help you to find out the solution.

SHEATH MATERIALS



SS304/321(NI)

SS316(NI)

SS304/321(CU)

SS316(CU)

DIA(mm/inch)

2

3

4

6

8

2

3

4

6

8

2

3

4

6

8

2

3

4

6

8

2/0.079









2.4









3/0.12

3.2

4

4.5/0.177

4.8

5

6.0/0.236

6.4/0.250

8.0/0.313


QUALITY GUARANTEE

All SICC’ RTD mi cables are manufactured to meet the requirements specified in calibration results for all mineral insulated cable with each shipment, including batch number, raw materials chemistry, lab environment condition,etc. Each order has only one job number for tracement.

We works continuously to reduce the measurement uncertainty at each calibration temperature and new estimates are made every six months to ten months,ensuring any deviations are identified early so that results generated by the lab remain consistent and accurate.

We supply the top quality MI RTD cable 100% through QA program supervised by the Chief Quality Officer. Continuously doing the job of raw materials purchase management, manufacturing processes optimization, staff training,etc. Our sales prices can always keep competitive all over the world.


SHIPPING DETAILS

SICC' produce bases are closed to Shanghai within 2 hours, as the most modern city that having a very convenient logistics network , this advantage can promise our mineral insulated RTD cables are delivered to you by air and sea ship on time. Shipments are usually made in cartons measuring 70*70*20cm, for large shipments can be palletized.

All coils shipped are uniquely identified with SICC’ shipping tag, it shows the customer’s order number, specification, batch number, accuracy, length,date.


Pls contact us for a completed quote and we will be waiting here at 7*24.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
