SICC is the world's leading supplier of Type N MI cable with 10 production lines and 4 million meters annual. we constantly refine and improve the technology, inculding
accuracies,powder grades,sheath materials,configurations,as it remains the heart
of our products to this day.
SPECIFICATIONS DETAILS
We can supply Type N MI cable from O.D=0.25 to
12.7 mm or 0.01" to 0.5" withSS304/321,SS316,SS310, SS316TI,Inconel600/601, Nircobell sheath and etc.
Also If you have a special
Type N MI cable application, contact us without hesitate, our very
experienced engineers will help you to find out the solution.
|
|
SHEATH MATERIALS
|
|
|
SS304/321
|
SS316
|
SS310
|
INCONEL600
|
NIRCOBELL
|
|
DIA(mm/inch)
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
Simplex
|
Duplex
|
|
0.25/0.010
|
●
|
|
●
|
|
●
|
|
●
|
|
|
|
|
0.5/0.020
|
●
|
|
●
|
|
●
|
|
●
|
|
|
|
|
1.0/0.040
|
●
|
|
●
|
|
●
|
|
●
|
|
|
|
|
1.5/0.060
|
●
|
|
●
|
|
●
|
|
●
|
|
●
|
|
|
1.6/0.062
|
●
|
|
●
|
|
●
|
|
●
|
|
●
|
|
|
2.0/0.079
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
2.4/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
3.0/0.120
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
3.2/0.125
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4.0/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4.5/0.177
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4.8/0.188
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
5.0/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
6.0/0.236
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
6.4/0.250
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
8.0/0.313
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
9.5/0.375
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
10/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
10.8/
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
12.7/0.5
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
The size’s tolerance of SICC’ Type N MI cable
|
Outside Sheath Diameter
|
±0.002" (±0.05mm) or ±1% of nominal diameter
|
|
Wall Thickness
|
10% of sheath diameter as a minimum
|
|
Wire Diameter
|
15% of sheath diameter as a minimum for 2 wires ,
|
|
|
12% of sheath diameter as a minimum for 4 wires,
|
|
|
9% of sheath diameter as a minimum for 6 wires
|
|
Calibration
|
To meet special limits of error as defined in ASTM-E230 and IEC 60584-2
|
|
MgO Purity
|
99.6% Sea Mgo Powder
|
QUALITY GUARANTEE
All SICC’ Type N MI cable are manufactured to meet the requirements specified in IEC61515 and ASTM
E585, and the calibration tolerance of IEC584 class 1 and ASTM E230 Special Limit Error. We provide
calibration results for all Type N MI cable with each shipment,
including EMF values, accuracy, batch number, raw materials chemistry, lab environment
condition, etc. Each order has only one job number for tracement. Calibration
capability is available up to 1000C on suitable thermocouple types.
Our lab routinely
calibrates at the following fixed points:100C,200C,400C,600C,800C,1000C for Type N MI cable ,we
works continuously to reduce the measurement uncertainty at each calibration
temperature and new estimates are made every six months to ten months, ensuring
any deviations are identified early so that results generated by the lab remain
consistent and accurate.
We can supply the top quality Type N MI cable 100% through QA program supervised by the Chief Quality Officer. because continuously doing the job of raw materials purchase management, manufacturing processes optimization, staff training, etc.
SHIPPING DETAILS
SICC' produce
base is closed to Shanghai within 2 hours, as the most modern city that
having a very convenient logistics network , this advantage can promise our mineral
insulated cables are delivered to you by air and sea ship on time. Shipments are usually made in cartons measuring 70*70*20cm,
for large shipments can be palletized/ wood cases.

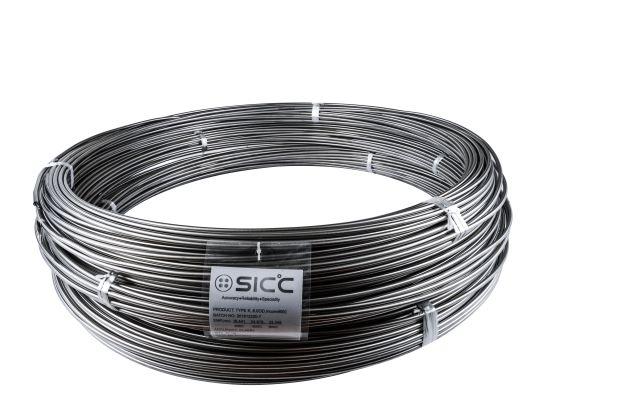

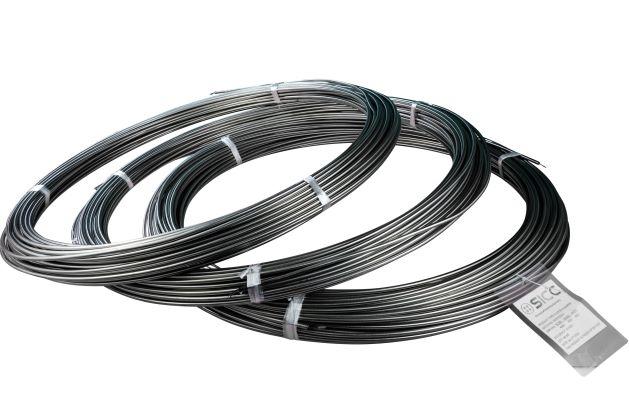

All coils of Type N MI cable shipped are uniquely identified with SICC’ shipping lab, it prints the customer’s
order number, specification, batch number, accuracy, coil length, date.
Pls contact us for a completed quote and we will be waiting here at 7*24.
