Home | Mineral insulated cable | Mineral insulated thermocouple cable |

Mineral insulated compensating cables

Mineral insulated compensating cables manufacturer
Mineral insulated compensating cables manufacturer

Mineral insulated compensating cables

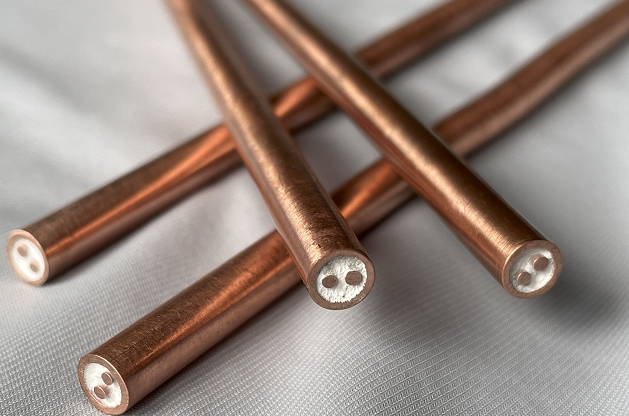

Mineral insulated compensating cables have inner conductors of R/S Type (Cu- CuNi) and B Type (Cu-Cu) Compensating conductor with copper sheath.

  • TYPE:

    R/S/B
  • DIA:

    6.0mm
  • SHEATH MATERIALS:

    Copper


SICC is one of the world's leading supplier of mineral insulated cable with 10 production lines and 4 million meters annual. Over the decades, we constantly refine and improve the technology, inculding accuracies, powder grades, sheath materials, configurations, as it remains the heart of our products to this day.



SPECIFICATIONS DETAILS

We can supply Mineral insulated compensating Cables type R/S(Copper- Alloy#11 conductors), mainly 6.0mm O.D.



External Diameter (mm)

Tolerance ±(mm)

Sheath thickness (mm)

Tolerance ±mm)

Copper Wire
Diameter(mm)

Tolerance ±(mm)

Alloy #11 wire Diameter(mm)

Tolerance ±(mm)

Duplex

6

0.05

0.6

0.05

1.2

0.13

1.13

0.1











1.3



1.1













1.35



1.2



Simplex

6

0.05

0.6

0.05

1.3

0.16

1.2

0.12











1.57



1.25













1.35



1.2


Also If you have a special mineral insulated compensation cable application, contact us without hesitate, our very experienced engineers will help you to find out the solution.


QUALITY GUARANTEE

We supply the top quality mineral insulated compensation cable(S/R thermocouple compensation wires) 100% through QA program supervised by the Chief Quality Officer. Continuously doing the job of raw materials purchase management, manufacturing processes optimization, staff training,etc. Our sales prices can always keep competitive all over the world.


SHIPPING DETAILS

SICC' produce bases are closed to Shanghai within 2 hours, as the most modern city that having a very convenient logistics network , this advantage can promise our mineral insulated cables are delivered to you by air and sea ship on time. Shipments are usually made in cartons measuring 70*70*20cm, for large shipments can be palletized.

All coils shipped are uniquely identified with SICC’ shipping tag, it shows the customer’s order number, specification, batch number, accuracy, length,date.


Pls contact us for a completed quote and we will be waiting here at 7*24.
