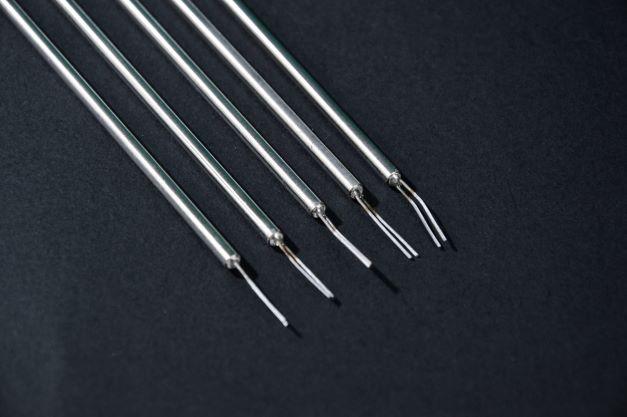

Thermocouple probe

We use mineral insulated cable to make mi cable probes and the probes can be assembly to different kinds of thermocouples. the specifications of thermocouple probe are from DIA0.25 to 12.7mm or 0.010 to 0.500 inch with SS,Inconel sheath,etc.


  • TYPE:

    K J T N E
  • DIA:

    0.25-12.7mm
  • SHEATH MATERIALS:

    SS304,321,316,316Ti,310,446, Inconel600,601, Nircobell sheath,etc

Type

Name of Material

Application Range

K

NiCr-NiSi

-200 to 1200°C

J

Fe-CuNi

-40 to 750°C

T

Cu-CuNi

-200 to 350°C

E

NiCr-CuNi

-200 to 900°C

N

NiCrSi-NiSi

-200 to 1200°C

Thermocouple probe’s specifications

SHEATH MATERIALS



SS304/321

SS316

SS310

INCONEL600

NIRCOBELL

DIA(MM/inch)

Simplex

Duplex

Simplex

Duplex

Simplex

Duplex

Simplex

Duplex

Simplex

Duplex

0.25/0.10













0.5/0.20













1.0/0.40













1.5/0.60











1.6/0.62











2.0/0.79

2.4/

3.0/1.20

3.2/1.25

4.0/

4.5/1.77

4.8/1.88

5.0/

6.0/2.36

6.4/2.50

8.0/3.13

9.5/3.75

10/




We supply the top quality thermocouple probes 100% through QA program supervised by the Chief Quality Officer. Continuously doing the job of raw materials purchase management, manufacturing processes optimization, staff training,etc. Our sales prices can always keep competitive all over the world.

SICC can supply all types of mi thermocouple probes for temperature sensors.If you have a special application, pls contact our sales department to find out the solution, we will be waiting here at 7*24.
