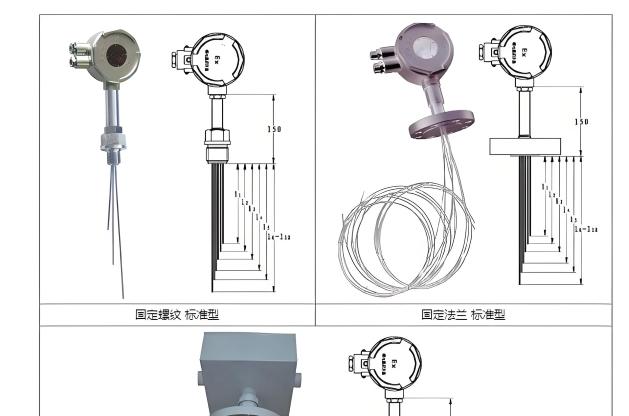

Multipoint thermocouple

We use mineral insulated cable to make Thermocouple probe  and the probe can be assembly to different kinds of thermocouples. the specifications of Thermocouple probe are from DIA0.25 to 12.7mm or 0.010 to 0.500 inch with SS,Inconel sheath,etc. Here in SICC, we produce Thermocouple probe using the highest quality raw materials. A wide range of materials such as tube,Mgo powder,bare thermocouple wire and more are carefully sourced to make the best quality. The thermocouple probe can be applied in many industries, such as automotive probe,  medical probe, semiconductor probe. Send us your inquiries today!

Variable-diameter thermocouples are common temperature measurement elements，its special structure can greatly improve the response time. SICC can also customized Variable-diameter thermocouples based on your detailed specifications. Thus, meeting your project or business requirements. Send us your inquiries today!

Through continuous communication and research with customers in the precision industry and minimally invasive medical fields, we have successfully developed an MicroThermo® ultra-fine and strong rebound Elastic thermocouple probe specifically for these high-tech industries, thus achieving non-destructive and accurate temperature measurement.

As a trusted Chinese exporter and manufacturer of precision temperature sensing solutions,SICC specialize in producing fully customizable Mineral Insulated (MI) Thermocouple Probes designed to empower global clients in manufacturing tailored thermocouples for diverse industrial applications. Our Mineral Insulated Thermocouple probes combine rugged mineral insulation with flexible design options, ensuring fast response times, exceptional durability, and compatibility with extreme environments. Ideal for industries such as metallurgy, energy, automotive, aerospace, and pharmaceuticals, our probes are engineered to meet stringent international standards while offering unmatched adaptability.

As a leading semi-finished MI (mineral insulated) thermocouple manufacturer, we are committed to providing high-quality, precision-engineered components to improve the accuracy and reliability of temperature sensing applications. Our semi-finished MI thermocouples combine advanced technology with superior craftsmanship to provide unparalleled performance in a variety of industrial environments.

In order to improve the response speed of thermocouples during temperature measurement, Swaged Mineral Insulated Thermocouples  are often used. This special structural design enables the thermocouple to quickly convert the change into an electrical signal when the temperature of the object being measured changes. This can meet the use of many special scenarios in different industries.

Type K thermocouple wire is the most common thermocouple conductor(≥500℃), it has a good resistance against oxidation and can be recommended for oxidizing and inert atmospheres.Type K thermocouple wire can not be used in sulphurous and vacuum atmospheres directly at a high temperature,as this will have a significant impact on the EMF values. The composition of positive(KP) is Ni90Cr10, negative(KN) is Ni97Si3 for Type K thermocouple wire .

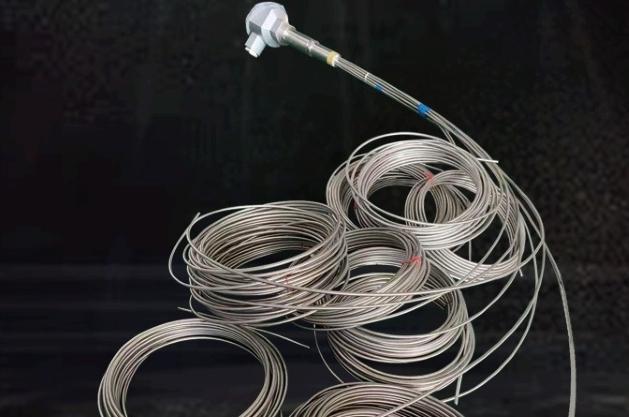

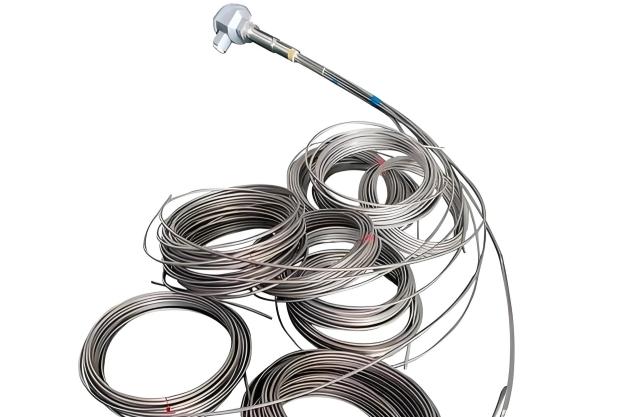

Mineral insulated thermocouple cable is used to insulate thermocouple wires from one another and from the metal sheath that surrounds them. Mineral insulated thermocouple cable has two (or four when duplex) thermocouple wires running down the middle of the tube. The tube is then filled with magnesium oxide powder and compacted to ensure the wires are properly insulated and separated. Mineral insulated thermocouple cable helps to protect the thermocouple wire from corrosion and electrical interference.
