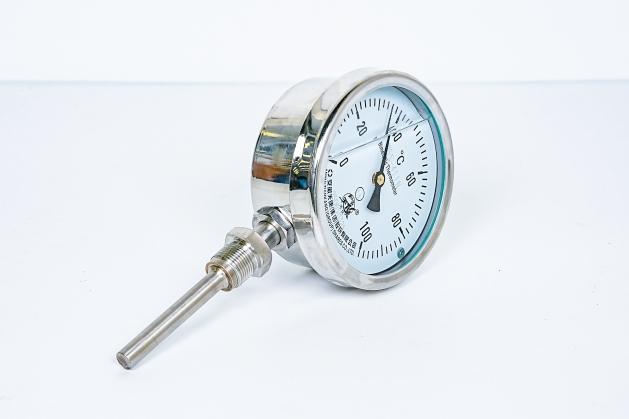

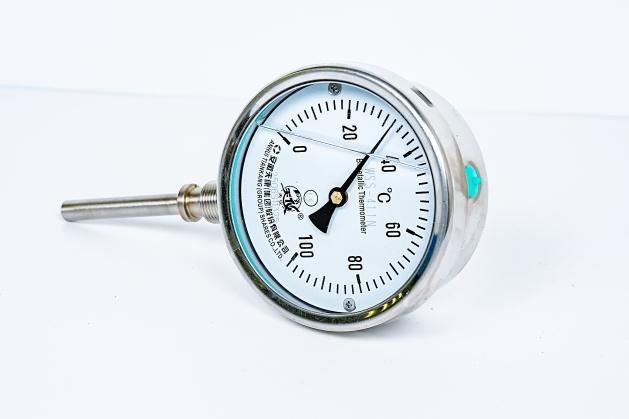

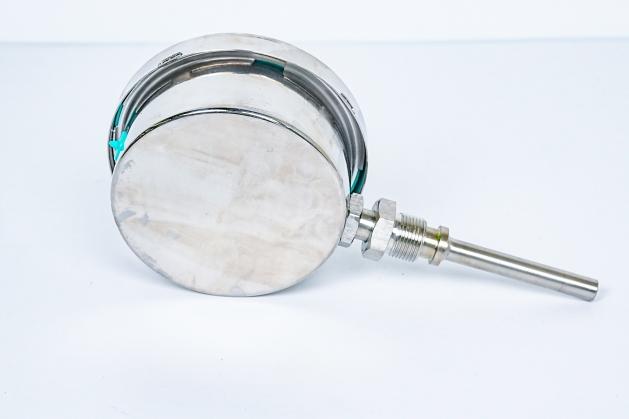

Radial Bimetallic thermometer

Semi-finished thermocouples are intermediate components that have completed core processing and possess specific functional modules, but have not yet been assembled into end-use temperature sensors. They are the core substrate in the thermocouple industry chain, providing temperature sensing modules that can be quickly integrated.

RTD Sensor Probes refer to intermediate products that have not yet completed all manufacturing processes during the thermal resistor production process, but have already possessed some functions or structures.

Bimetallic thermometers are based on a bimetallic strip wound into a circular, curved shape. When one end expands due to heat, it drives the pointer to rotate, and the instrument displays the temperature corresponding to the thermoelectric potential. These Bimetallic thermometers can directly measure the temperatures of liquids, steam, and gases within a range of -80°C to +500°C in various production processes.

Bimetallic thermometers are constructed by welding two metal sheets with different linear expansion coefficients based on the thermal expansion characteristics of a bimetallic strip. When the temperature changes, the bimetallic strip bends due to the change in expansion coefficient, causing the pointer to indicate the corresponding temperature on the arrow.

Type T thermocouple wire is suitable for temperature below 0℃ with an upper temperature limit of 350℃(ASTM E230:370℃) and can be used in oxidizing and reducing atmospheres or inert gas atmospheres,The composition of positive(TP) is Cu100,negative(TN) is Cu55Ni45 for Type T thermocouple alloys . Here in SICC, we produce Type T thermocouple wire using the highest quality raw materials. A wide range of materials such as nickel and copper element and more are carefully sourced to make the best quality. Send us your inquiries today!

Nickel chrome wire is a kind of non-magnetic alloy of nickel and chromium, it is widely used in heating elements. The maximum operation temperature of the heating elements is related to the wire diameter of Nickel chromium wire, it is better to choose thicker wires, the corrosive atmospheres also have a considerable relationship with the maximum operation temperature. The surface temperature of Nickel chromium wire is about 100C higher than the inner normally, when the operation temperature exceeds the limit, the oxidation of heating elements itself is accelerated, the heat resistance will be reduced, which is easily deformed,collapsed and even appreas to be broken, thereby shortening the service life of Nickel chromium wire.

RTD MI Cable Probe is a high-precision, high-reliability temperature measurement sensor,  It adopts a special armored structure to tightly wrap the thermal resistor element in a metal casing, and has good mechanical properties, anti-interference ability and long-term stability. As a leading Chinese manufacturer of RTD MI Cable Probes, SICC delivers cutting-edge solutions engineered to meet the exacting demands of global industries. Specializing in B2B partnerships, our Mineral Insulated (MI) RTD probes combine advanced materials, rigorous quality control, and customizable designs to ensure accurate temperature measurement in critical applications。Whether you need semi-finished products or OEM/ODM services, for more information or to discuss how our RTD MI Cable Probe can benefit your project, please contact us today and send your drawings and requirements. We look forward to hearing from you!

Mineral insulated copper cable(MICC) is combined annealed copper as conductor, Mgo powder as insulation, and annealed copper tube as sheath, it is widely applicated in the power industry.
