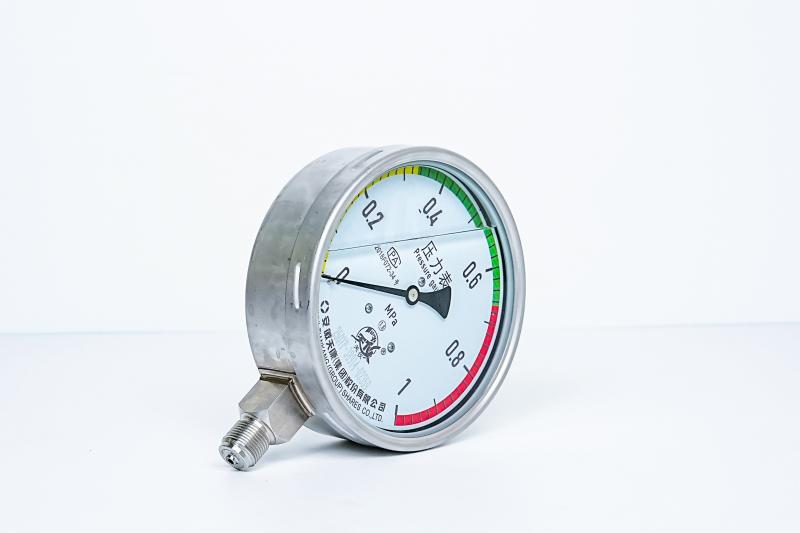

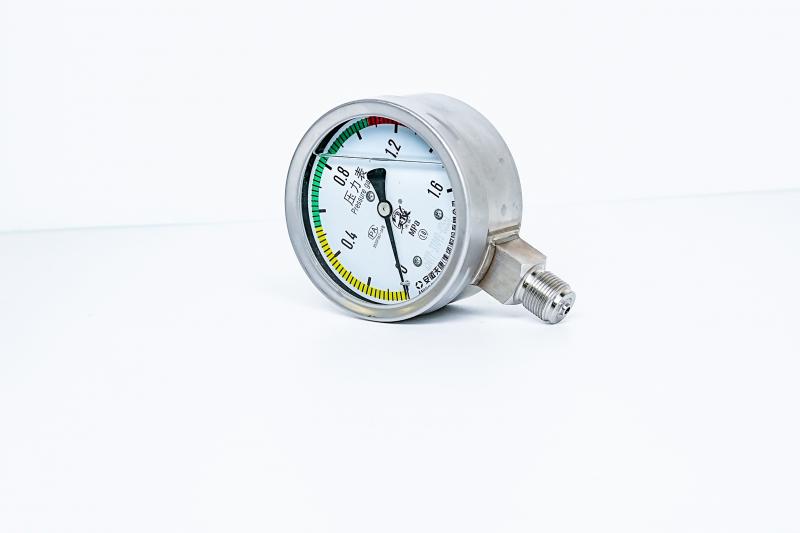

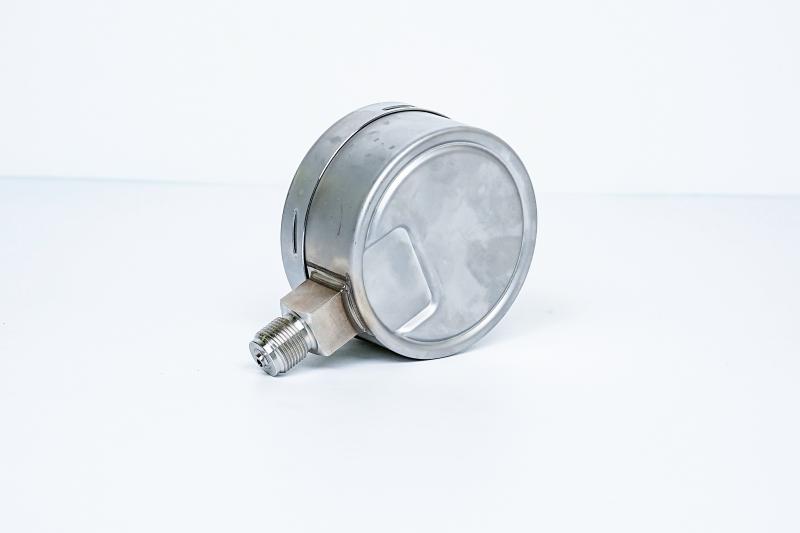

Stainless Steel Industrial Pressure Gauge

Bellows Pressure Gauge uses a diaphragm as a sensitive element for measuring minute pressures. It measures low and negative pressures in gases that are non-corrosive to copper alloys and non-explosive. It is widely used in cobalt furnace ventilation, gas pipelines, combustion equipment, and other similar equipment. Bellows Pressure Gauge consists of a measuring system (including connectors, diaphragm), a transmission mechanism, an indicating device, and a housing.When the pressure of the measured medium acts on the diaphragm, its free end undergoes a corresponding elastic deformation—displacement. This displacement is amplified by a lever-driven transmission mechanism, and the indicating device displays the measured pressure on the instrument dial.

Shock Resistant Pressure Gauge thanks to internal damping oil filling and a matching buffer device, offer excellent shock resistance. They are suitable for applications where the measured medium experiences strong pressure fluctuations or shocks, where sudden unloading occurs frequently during production processes, and where there is high ambient vibration. They can measure the average value of pulsating pressures of gases and liquids, thus overcoming damage to the instrument from strong pressure fluctuations and environmental vibration, ensuring accurate readings.

Diaphragm Differential Pressure Gauges use two separate diaphragms to sense pressure on the high-pressure side and the low-pressure side, respectively. When there's a pressure difference between the two sides, the diaphragms deform. This deformation is converted by a mechanical transmission mechanism into movement of the pointer, visually displaying the differential pressure on the dial.

Mineral insulated RTD cable with Copper conductors is the normal type for RTD cable for high temperature measurments up to 400C, it is welcome for cheap cost and steady resistance. The MI RTD cables are the base material for RTD sensors, its structure advantage with anti pollution and mechanical strength promise can be applied in the harsh environment.

As a trusted Chinese exporter and manufacturer of precision temperature sensing solutions,SICC specialize in producing fully customizable Mineral Insulated (MI) Thermocouple Probes designed to empower global clients in manufacturing tailored thermocouples for diverse industrial applications. Our Mineral Insulated Thermocouple probes combine rugged mineral insulation with flexible design options, ensuring fast response times, exceptional durability, and compatibility with extreme environments. Ideal for industries such as metallurgy, energy, automotive, aerospace, and pharmaceuticals, our probes are engineered to meet stringent international standards while offering unmatched adaptability.

Type J thermocouple alloys is suitable for using in vacuum, oxidizing and reducing atmospheres or inert gas atmospheres. Because of high temperature oxidizing quickly for JP, the measuring temperature range is restricted. The composition of positive(JP) is Fe100, negative(JN) is Cu55Ni45 for Type J bare thermocouple wire .

Variable-diameter thermocouples are common temperature measurement elements，its special structure can greatly improve the response time. SICC can also customized Variable-diameter thermocouples based on your detailed specifications. Thus, meeting your project or business requirements. Send us your inquiries today!

Mineral insulated RTD cable with Constantan(Cu55Ni45) conductors have stable resistance for high temperature measurments up to 650C, Its characteristics are not easy to change its properties with temperature changes, and the resistivity is high. It has a low temperature coefficient of resistivity and medium resistivity,more and more potential in the industry. The MI RTD cables are the base material for RTD sensors, its structure advantage with anti pollution and mechanical strength promise can be applied in the harsh environment.
