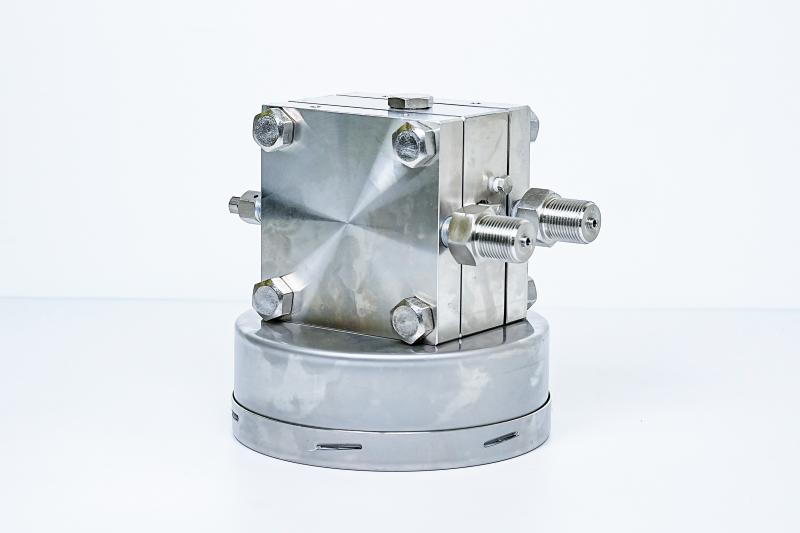

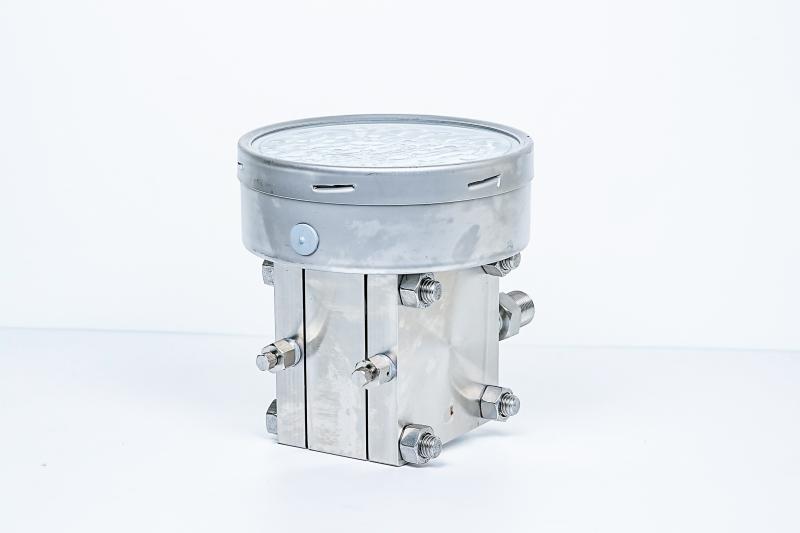

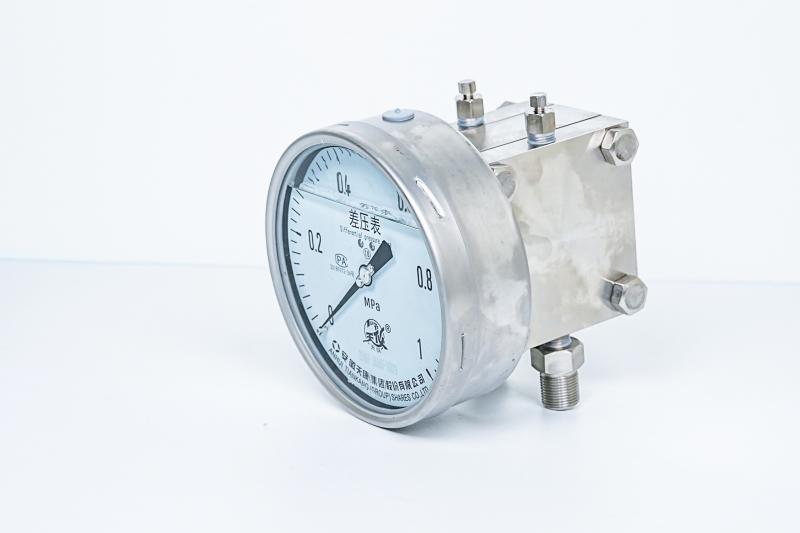

Diaphragm Differential Pressure Gauge

The Stainless Steel Industrial Pressure Gauge consists of a pressure-guiding system (including connectors, spring tube, etc.), a gear transmission mechanism, an indicating device, and a housing. All components are made of stainless steel. When the spring tube is subjected to the pressure of the measured medium, its end undergoes corresponding elastic deformation, which is amplified by the gear transmission mechanism and displayed on the dial by the indicating device. The Stainless Steel Industrial Pressure Gauge's housing is sealed, effectively protecting the internal components from environmental influences and contaminants. Furthermore, the oil filling inside the housing provides resistance to pressure fluctuations of the measured medium and severe vibrations in the operating environment, ensuring both corrosion resistance and shock resistance.

Bellows Pressure Gauge uses a diaphragm as a sensitive element for measuring minute pressures. It measures low and negative pressures in gases that are non-corrosive to copper alloys and non-explosive. It is widely used in cobalt furnace ventilation, gas pipelines, combustion equipment, and other similar equipment. Bellows Pressure Gauge consists of a measuring system (including connectors, diaphragm), a transmission mechanism, an indicating device, and a housing.When the pressure of the measured medium acts on the diaphragm, its free end undergoes a corresponding elastic deformation—displacement. This displacement is amplified by a lever-driven transmission mechanism, and the indicating device displays the measured pressure on the instrument dial.

Shock Resistant Pressure Gauge thanks to internal damping oil filling and a matching buffer device, offer excellent shock resistance. They are suitable for applications where the measured medium experiences strong pressure fluctuations or shocks, where sudden unloading occurs frequently during production processes, and where there is high ambient vibration. They can measure the average value of pulsating pressures of gases and liquids, thus overcoming damage to the instrument from strong pressure fluctuations and environmental vibration, ensuring accurate readings.

Type E Bare thermocouple wire develops the highest source voltage(EMF) per℃ for measuring tiny temperature shift,it is suitable in oxidizing or inert gas atmospheres up to 900℃(ASTM E230:870℃),  The composition of positive(EP) is Ni90Cr10, negative(EN) is Cu55Ni45 for type E thermocouple wire material. SICC is your one-stop solution providing Type E Bare thermocouple wire that will meet your needs, Contact us now for more inquiries!

Multi-point thermocouple is a thermocouple specially designed for measuring multiple points at the same time, which is widely used in the petroleum, chemical and other industries. It is especially suitable for large containers with insignificant temperature gradients, such as large fertilizer synthesis towers, storage tanks and other devices.

Mineral insulated copper cable(MICC) is combined annealed copper as conductor, Mgo powder as insulation, and annealed copper tube as sheath, it is widely applicated in the power industry.

The Stainless Steel Industrial Pressure Gauge consists of a pressure-guiding system (including connectors, spring tube, etc.), a gear transmission mechanism, an indicating device, and a housing. All components are made of stainless steel. When the spring tube is subjected to the pressure of the measured medium, its end undergoes corresponding elastic deformation, which is amplified by the gear transmission mechanism and displayed on the dial by the indicating device. The Stainless Steel Industrial Pressure Gauge's housing is sealed, effectively protecting the internal components from environmental influences and contaminants. Furthermore, the oil filling inside the housing provides resistance to pressure fluctuations of the measured medium and severe vibrations in the operating environment, ensuring both corrosion resistance and shock resistance.

As the world's leading supplier of Type S mineral insulated compensating cable, SICC provides cutting-edge solutions for industries that require precise temperature measurement in extreme environments. We focus on B2B partnerships, and our mineral insulated compensating cables combine advanced materials, strict quality control and customizable designs to meet the stringent standards of global buyers. No matter which country you are in or what diverse needs you have, we believe that our high-performanceType S mineral insulated compensating cable and excellent services will be your best choice.
